MODULE 07

How ESD Damages Electronics & Failure Mechanisms

A discharge that never trips a fuse can still end a product's life. Understanding exactly how nanosecond-scale current damages silicon -- immediately or months later -- is what turns an ESD failure report into a real design fix.

Learning Objectives

🔬
Explain gate oxide rupture and junction breakdown
⏳
Distinguish catastrophic vs. latent damage
🌀
Recognize common soft-failure symptoms

Animated: Damage Mechanism — Real PCB & Component Cross-Section

Left: a real SMD package soldered to a 4-layer FR-4 board, sliced open — solder fillets, gull-wing leads, lead frame, bond wires and the silicon die. Watch the ESD pulse enter through the pin, run up the bond wire into the die, and exit to the ground plane. Right: the die surface magnified, where the selected mechanism does its damage (layers exaggerated for clarity).

Latent damage is the more insidious of the two: the part passes production test, ships, and only fails weeks or months later in the field under normal thermal or electrical stress -- by which point tracing the failure back to an ESD event during handling can be extremely difficult.

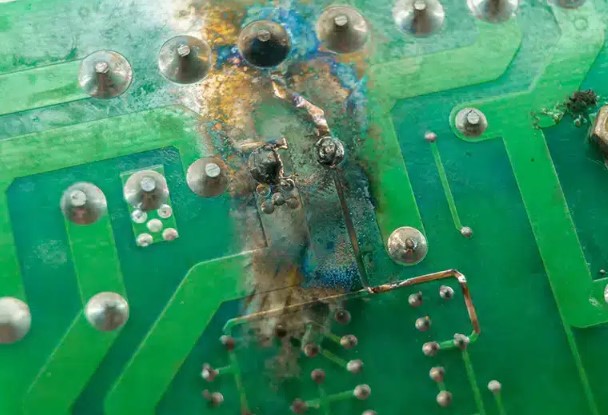

PCB with carbonized, burned traces and discolored solder joints
Catastrophic, board-level: carbonized FR-4 and burned copper where transient current found its path. Damage this visible makes diagnosis easy — ESD damage usually is not this obliging.

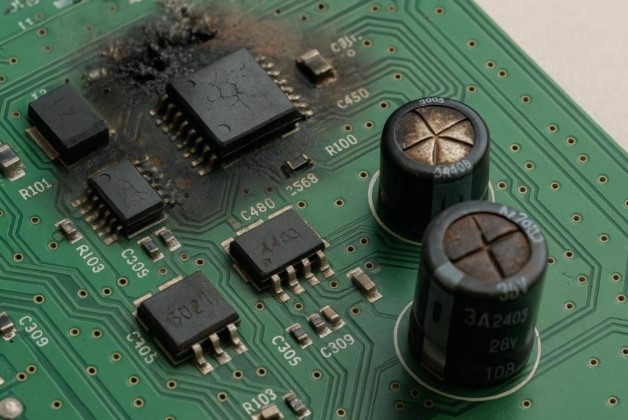

Charred SMD ICs and bulged electrolytic capacitors on a circuit board
Secondary casualties: a transient that latches up a regulator can cook downstream parts — charred packages and vented capacitors are the follow-on failure, not the root cause. Trace the event, not just the debris.

Not every ESD event leaves physical damage. A transient can simply corrupt a signal or state without harming any component -- these are the symptoms that performance criteria B and C (Module 04) are designed to capture.

Symptom Likely mechanism
Microcontroller reset / reboot Transient coupled into the reset pin or brown-out detector tripped by a supply-rail glitch
Frozen or corrupted display Bit-level corruption in a serial display interface (SPI/I2C) with no CRC/retry
Dropped USB / peripheral connection PHY-level bit errors or ESD-induced enumeration fault
False touch/button trigger Transient coupled into a capacitive-touch or GPIO input
Communication bus error / dropped packet Common-mode transient exceeding a transceiver's common-mode range momentarily
Data corruption in non-volatile memory Write cycle interrupted mid-operation by a reset or brown-out during the event
